Plastik meja plastik

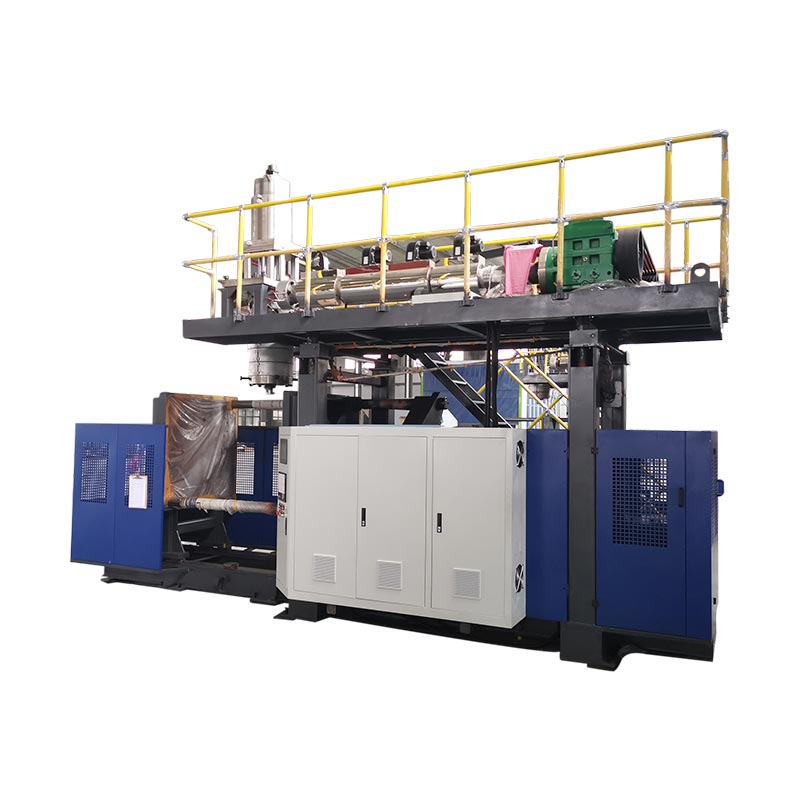

Model:KGS120Y

Kinggle KGS120y minangka mesin bunder plastik plastik sing bisa dicocogake kanggo aplikasi mesin jotosan bunder bunder. Nyepleh meja plastik utawa plastik exportrus Extrusion Jotosan Rezeki Mesin, nawakake desain khusus lan kualitas unggul, menehi sampeyan pinggiran kompetitif.

Jilid: 2000LBobot: 42t

Kirim Pitakonan

Deskripsi Produk Specification Application Workshop

Mesin Plastik Plastik KGS 120Y 183 mesin plastik digawe kanggo panel plastik jinis produk, kayata omah / ware house / hawa platen disesuaikan Mesin bisa nyathet syarat produksi produk khusus kanggo syarat, kanthi produksi kanthi cepet kanggo nyimpen biaya unit.
Kalebu pengontrol Kebalihan 100 Kebalur, lengen robot, lan bledosan ngisor Sistem, nambah produktivitas lan kualitas.

Fitur lan Keuntungan

Digunakake kanggo produk manufaktur ing macem-macem industri. Apa ana kontaner sing tahan karat ing industri kimia, botol kemasan kanthi standar kabangsa ing industri panganan, utawa kothak kemasan kanthi penampilan sing nyenengake kanggo produk sing beda-beda.
Proses pemakaran nganggo teknologi pemotong lan dioptimalake adhedhasar karakteristik produksi kapasitas kapasitas dhuwur ing mesin 120y blowing mesin. Prentah kanthi akurat tarif lan distribusi bahan mentah kanggo njamin ketebalan tembok seragam sajrone ngecat produk volume ultra, lan ngilangi cacat kualitas sing disebabake dening panganan sing ora rata.

Specifications

serial number	Material HDPE…	Mold closing oil cylinder(three cylinders)
serial number	Material HDPE…	Machine model:KGS120Z
Specifications
1	Max container capacity	2000 L
2	Output(dry Cycle)	300 PC/HR
3	Machine Dimension(L×W×H)	8.3 M ×3.4 M × 6.8 M
4	Machine weight	42 T
Clamping Unit
1	Clamping force	1800 KN
2	Mold platen size(W×H)	1600 MM×1900 MM
3	Platen openingstroke	600 MM-1800 MM
4	Platen moving stroke	700 MM
5	Max mold size(W×H)	1650 MM×19000 MM
6	Mold thickness	830MM - 1030 MM
Power
1	Servooil pump motor power	25 KW
2	Servo pump displacement	200 L/MIN
3	Blowpressure	0.8 Mpa
4	Air consumption	2 M²/MIN
5	Cooling water pressure	0.3 Mpa
6	Water consumption	120 L/min
7	Average energy consumption	110 KW -130 KW
Extruder unit
1	Screw diameter	120 MM
2	Screw L/D ratio	30 L/D
3	Melting capacit for HDPE	350 Kg/hr
4	Number of heating zone	6 ZONE
5	Screw heating power	32.5 KW
6	Screw fanpower	0.6 KW
7	Extruder motor power	132 KW
Die head
1	Number of heating sections	5 ZONE
2	Heating power	38.8 KW
3	Maxdie-pin diameter	800(950) MM
4	Accumulator capacity	45(60) L
5	(PE)Accumulator weight	33(45) KG
