60L mesin ngeculke

Model:KGB90A

Open tetep lan nutup mesin ngeculke jotosan, nampilake rod tikel sinkronisasi rod lan silinder langsung Milih Milih Milih, ngirim katrangan lan efisiensi sing dhuwur. Dilengkapi sistem servo hydrallic kanggo nanggepi kanthi cepet lan tabungan energi, 60L iki nambah mesin molding 60L iki luwih apik kanggo ngasilake macem-macem produk sing luwih gedhe.

Jilid: 60LBobot: 14t

Kirim Pitakonan

Deskripsi Produk Specification Application

Model standar KGB90, mesin ngeculke sirah sing gedhe, kalebu pengontrol kekandelan 100 robot, lan sistem jotosan ngisor, nambah produktivitas lan kualitas produk. Mesin cetakan jotosan 60L iki cocog kanggo macem-macem aplikasi, kalebu solusi mesin gendang blumbang gulu, lan produksi banyu, toys, bolo, lan alangan lalu lintas.

Fitur lan Keuntungan

Model iki minangka jinis penutupan cetakan lan nutup, nggunakake mekanisme peningkatan dobel, lan clamping tekanan silinder langsung
● silangan silinder silinder mati seri
● volume maksimal 60L
● Cocog kanggo tong bungkus kimia, dolanan gedhe, buntut mobil Abs, lsp.
● Nggunakake teknologi sing unik, cetakan penururanisasi, kekuwatan clamping gedhe, kacepetan clamping cepet, siklus produk cekak

60L accumulate blow molding machine

Specifications

Serial number	Material PE、PP、ABS...	Fixed open- closing type Mold closing oil cylinder(single cylinder)
Serial number	Material PE、PP、ABS...	Machine model:KGB90A
Specifications
1	Max container capacity	60 L
2	Output(dry Cycle)	500 PC/HR

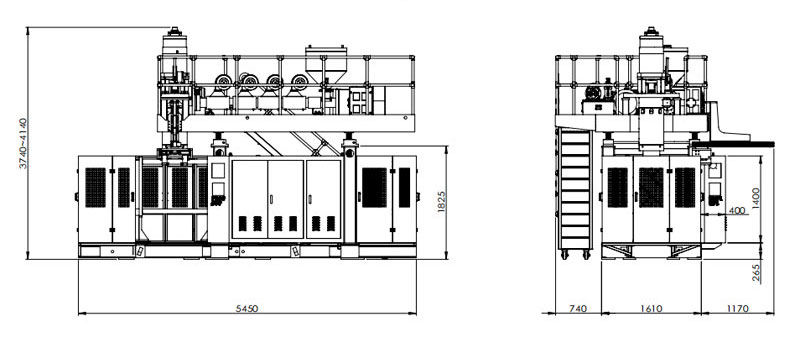

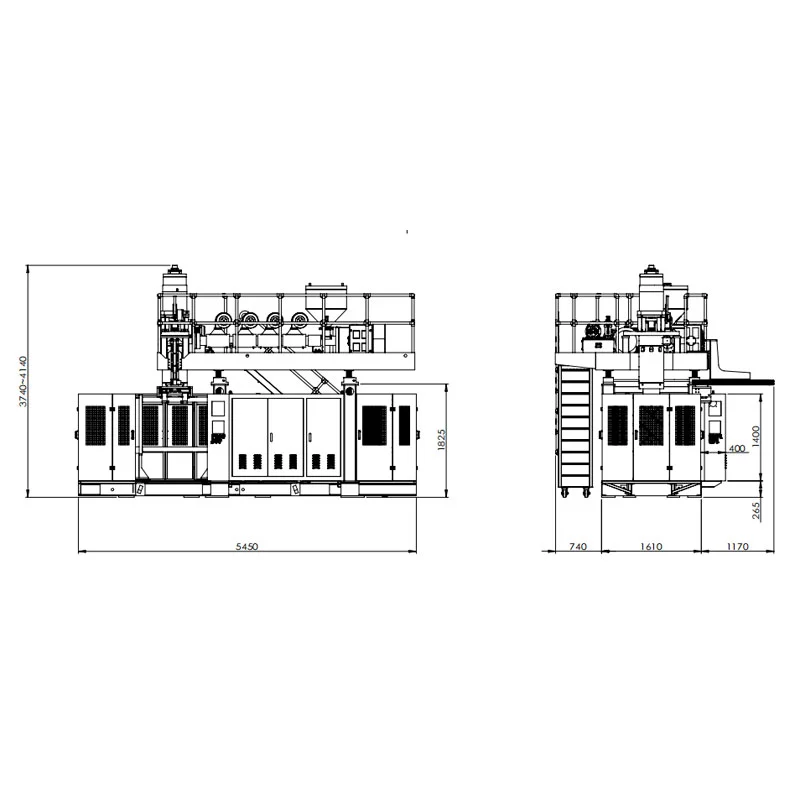

3	Machine Dimension(L×W×H)	5.45 M x 3.5 M x 4.2 M
4	Machine weight	14 T
Clamping Unit
1	Clamping force	280 KN
2	Mold platen size(W×H)	960 MM x 980 MM
3	Platen opening stroke	450 MM-1050 MM
4	Platen moving stroke	500 MM
5	Max mold size(W×H)	700 MM x 980 MM
6	Mold thickness	460 MM-550 MM
Power
1	Servo oil pump motor power	18.5 KW
2	Servopump displacement	150 L/MIN
3	Blow pressure	0.8 Mpa
4	Air consumption	1 M³/MIN
5	Cooling water pressure	0.3 Mpa
6	Water consumption	90 L/min
7	Average energy consumption	35 KW-45 KW
Extruder unit
1	Screw diameter	90 MM
2	Screw L/D ratio	24 L/D
3	Melting capacit for HDPE	130 Kg/hr-160 Kg/hr
4	Number of heating zone	4 ZONE
5	Screw heating power	17.6 KW
6	Screw fan power	0.5 KW
7	Extruder motor power	45 KW
Die head
1	Number of heating sections	5 ZONE
2	Heating power	26.8 KW
3	Max die-pin diameter	320 MM
4	Accumulator capacity	6.6 L
5	(PE)Accumulator weight	4.95 KG
