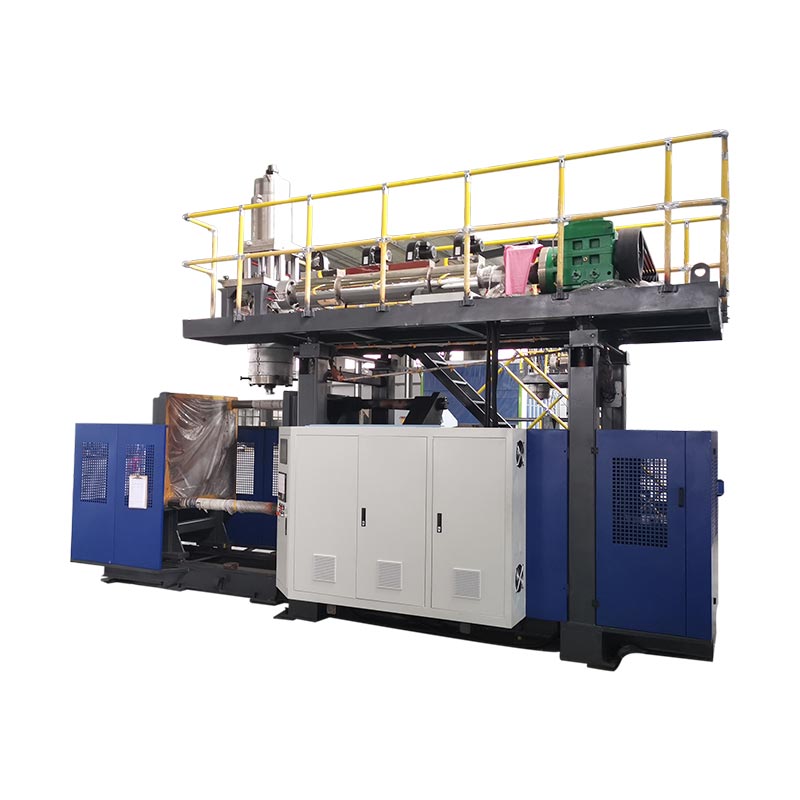

160L Mesin Molding Molding

Model:KGB110A

Mesin ngeculke jotosan 160L iki saka supplier KingGLe iki Dilengkapi sistem servo hydrallic kanggo nanggepi cepet lan tabungan energi, mesin iki excels kanggo ngasilake macem-macem produk, saka kontaner sing luwih gedhe.

Jilid: 120lBobot: 22T

Kirim Pitakonan

Deskripsi Produk Specification Application

Model standar KGB110A standar, mesin ngeculke sirah sing gedhe Kalebu pengontrol Kebalihan 100 Kebalur, lengen robot, lan bledosan ngisor Sistem, nambah produktivitas lan kualitas produk. Kualitas Moldgle Kualitas Kualitas 160L Akumulasi Cocog Kanggo macem-macem aplikasi, kalebu Molding Jotosan Gelung Kimia Solusi mesin, plastik expting proses mesin ngecor, ngambang Aplikasi mesin ngecor bledhek, lan produksi kemasan kimia Tong, Tangki Mobil, Dolanan Mesin Molding, Auto, Barriers Lalu Lintas, Perabot Kedokteran, Buoys, Kursi, lan Tabel.

Fitur lan Keuntungan

Ngeduk jero menyang potensi teknologi bisa nyedhiyani solusi produk sing dhuwur kanggo pelanggan sing ngupayakake biaya sing larang; Uga bisa mbangun lapisan kaping pindho utawa macem-macem struktur gabungan lapisan kanthi kerajinan sing apik banget.
Penguatan Key Operasi saka 110A Mesin Molding Blow Kanthi Sistem Daya Hydraulic sing Kuat lan dipercaya. Transmisi tenaga sing terus-terusan lan stabil bakal ngalami pembukaan lan nutup operasi cetakan, lancar lan efisien, lan uga ana ing ngarepe produk sing apik lan bisa nggunakake produk sing apik.

Specifications

serial number	Material PE、PP、ABS...	Mold closing oil cylinder(single cylinder)
serial number	Material PE、PP、ABS...	Machine model:KGB110A
Specifications
1	Max container capacity	120 L
2	Output(dry Cycle)	320 PC/HR
3	Machine Dimension(L×W×H)	6.6 M x 4.2 M x 5.2 M
4	Machine weight	22T
Clamping Unit
1	Clamping force	760 KN
2	Mold platen size(W×H)	1100 MM×1400 MM
3	Platen opening stroke	600 MM - 1600 MM
4	Platen moving stroke	600 MM
5	Max mold size(W×H)	1000 MMx1400 MM
6	Mold thickness	610 MM -750 MM
Power
1	Servo oil pump motor power	25 KW
2	Servopump displacement	200 L/MIN
3	Blow pressure	0.8 Mpa
4	Air consumption	1.8 M³/MIN
5	Cooling water pressure	0.3 Mpa
6	Water consumption	120 L/min
7	Average energy consumption	52 KW -60 KW
Extruder unit
1	Screw diameter	110 MM
2	Screw L/D ratio	25 L/D
3	Melting capacit for HDPE	160 Kg/hr-200 Kg/hr
4	Number of heating zone	4 ZONE
5	Screw heating power	24 KW
6	Screw fan power	0.6 KW
7	Extruder motor power	75 KW
Die head
1	Number of heating sections	5 ZONE
2	Heating power	35 KW
3	Max die-pin diameter	450(600) MM
4	Accumulator capacity	12(20) L
5	(PE)Accumulator weight	9(15) KG
