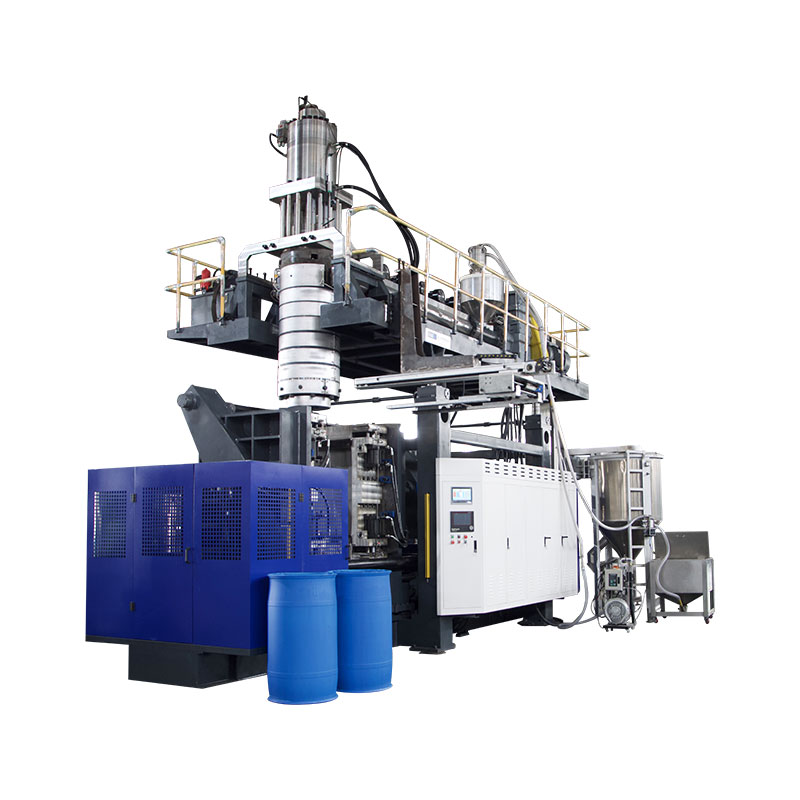

220 mesin mesin plastik plastik 220 liter

Model:KGB200L

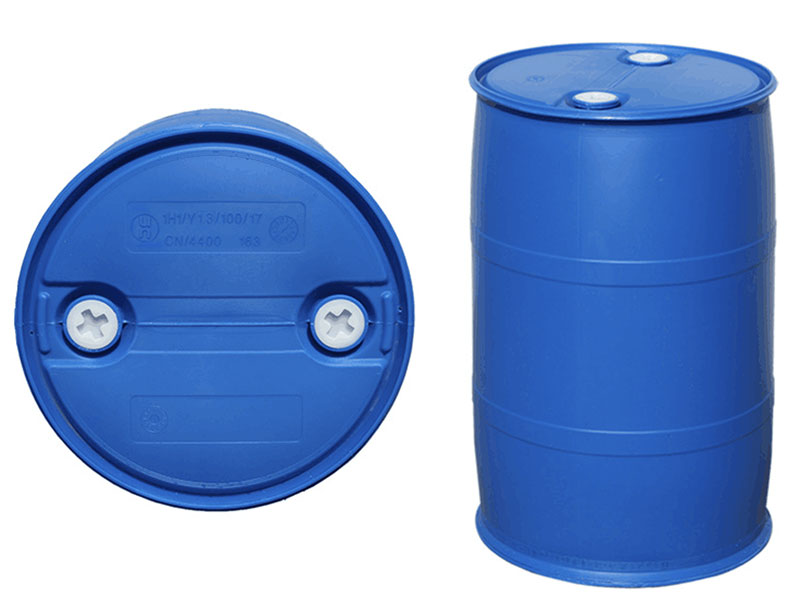

The KGB200L minangka mesin pembebangan jotosan panjang plastik plastik sing diluncurake kanthi tliti, dioptimalake kanggo aplikasi mesin gendang gendang biru biru. Kanggo 200 liter plastik gendang jotosan jotosan jotosan jotosan, kayata kimia lan drum industri, mesthekake resistensi kimia lan integritas struktural. Bisa pass 3 tes tes meter kanggo njaluk sertifikat PBB.

Jilid: 250LBobot: 36T

Kirim Pitakonan

Deskripsi Produk Specification Application

Accumulator mati sirah, digabungake karo unit ekstrumasi kinerja dhuwur, ngirim asil luar biasa. Mesin Pembaikuhan Blumbang 220 liter iki kalebu 100 Controlnlment Kebalihan 100 MOG, lan Lengan ngisor sistem kanggo efisiensi ditingkatake. Drum sing diasilake ketemu kualitase standar, kalebu nguji tes 3 meter lan entuk PBB Sertifikasi.

Fitur lan Keuntungan

Panyimpen Injeksi Pusat Injeksi Dobel pindho Silinder Die Kepala
Entuk kapasitas produksi dhuwur liwat desain sing dioptimalake lan manufaktur tliti, makarya kanggo ngasilake potongan / jam

Specifications

serial number	Material PE、PP、ABS、HMWHDPE...	Specialized Machine Series
serial number	Material PE、PP、ABS、HMWHDPE...	Machine model:KGB200L
Specifications
1	Max container capacity	250L
2	Output(dry Cycle)	300 PC/HR
3	Machine Dimension(L×W×H)	9.5 M x 4.1 M×6.5 M
4	Machine weight	36T
Clamping Unit
1	Clamping force	760 KN
2	Mold platen size(W×H)	1300 MM x1500 MM
3	Platen openingstroke	800 MM -1800 MM
4	Platen moving stroke	950 MM
5	Max mold size(W×H)	1100 MM ×1700 MM
6	Mold thickness	810 MM - 950 MM
Power
1	Servooil pump motor power	37 KW + 22 KW
2	Servo pump displacement	200 L/MIN +138 L/MIN
3	Blowpressure	0.8 Mpa
4	Air consumption	1.8 M²/MIN
5	Cooling water pressure	0.3 Mpa
6	Water consumption	120 L/min
7	Average energy consumption	70 KW - 80 KW
Extruder unit
1	Screw diameter	120 MM
2	Screw L/D ratio	32 L/D
3	Melting capacit for HDPE	320 Kg/hr
4	Number of heating zone	6 ZONE
5	Screw heating power	30.2 KW
6	Screw fanpower	0.6 KW
7	Extruder motor power	110(132) KW
Die head
1	Number of heating sections	5 ZONE
2	Heating power	38.8 KW
3	Maxdie-pin diameter	450 MM
4	Accumulator capacity	25 L
5	(PE)Accumulator weight	18 KG
