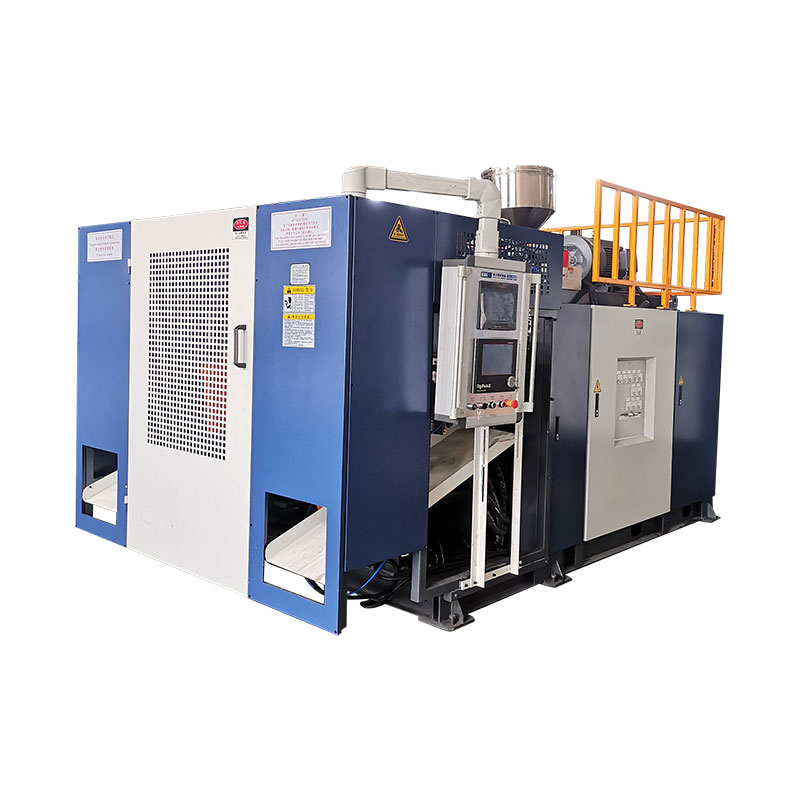

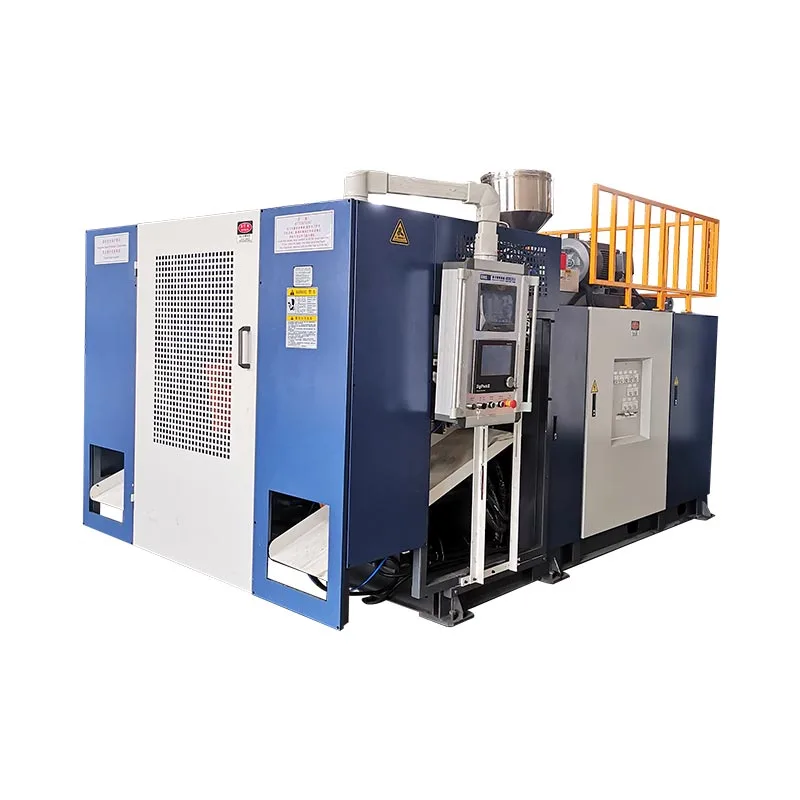

5l mesin bledug 5l kaping pindho

Model:KGB5D

Ngoptimalake produksi karo mesin ganda jotosan jotosan versasi 5l. Mesin kinerja dhuwur iki nawakake konfigurasi fleksibel, kalebu persiyapan Kepala 2, 3, utawa 4, utawa 4 Multi-Die mati, kanggo nampung macem-macem ukuran wadhah.

Jilid: 5LBobot: 5.2t

Kirim Pitakonan

Deskripsi Produk Specification Application

Saka botol cilik-volume menyang kontaner 5L gedhe, mesin kaping pindho jotosan jotosan 5s iki Produksi efisien lan kualitas efisien. Cocog kanggo macem-macem aplikasi, kalebu paket cuci cuci cuci cuci cuci cucuk jotosan, iku Output output luar biasa lan maksimal bali ing investasi.

Fitur lan Keuntungan

● Wangi-stasiun ulang taun gantian, nggunakake katup kathok tangkep buffer kanggo obah cetakan, efisien lan stabil
● Kepala mati diadopsi pusat panganan pusat
● Sistem kontrol elektronik nganggo kontrol Mitsubishi PLC, lan tombol manual bebas nggampangake koreksi operator lan imbuhan.
● volume produk maksimal yaiku 5L, yaiku peralatan campuran blowing jotosan kanggo produksi massa kurang saka 2-5l.
● Miturut ciri, bisa dipérang dadi lapisan siji, lapisan ganda, telung lapisan, garis transparan, lsp.
● Sistem hidraulik nggunakake desain bedane, efisiensi dhuwur lan kacepetan cepet

Specifications

Serial number	Material PE、PP、PVC、PA...	Mold-moving series
Serial number	Material PE、PP、PVC、PA...	Machine model:KGB5D
Specifications
1	Max container capacity	5L
2	Output(dry Cycle)	500 PC/HR x2 PC/HR
3	Machine Dimension(L×W×H)	3.2 M×2.2 M×2.5 M
4	Machine weight	5.2 T
Clamping Unit
1	Clamping force	65 KN
2	Mold platen size(W×H)	368 MMx450 MM
3	Platen openingstroke	188 MM-538 MM
4	Platen moving stroke	420 MM
5	Max mold size(W×H)	410 MM×450 MM
6	Mold thickness	200 MM-310 MM
Power
1	Servooil pump motor power	15 KW
2	Servo pump displacement	100 L/MIN
3	Blowpressure	0.6 Mpa
4	Air consumption	0.7 M³/MIN
5	Cooling water pressure	0.2 Mpa-0.3 Mpa
6	Water consumption	80 L/min
7	Average energy consumption	16 KW-25 KW
Extruder unit
1	Screw diameter	70 MM
2	Screw L/D ratio	25 L/D
3	HDPEMelting capacit for HDPE	80 Kg/hr
4	Number of heating zone	3 ZONE
5	Screw heating power	12.6 KW
6	Screw fanpower	0.25 KW
7	Extruder motor power	22 KW
Die head
1	Number of heating sections	3*8 ZONE
2	Heating power	3.7 KW
3	1MT Max die-pin diameter	150 MM
4	2 Center distance of double die head	150 MM-180 MM
5	2MT Max die-pindiameter	80 MM
