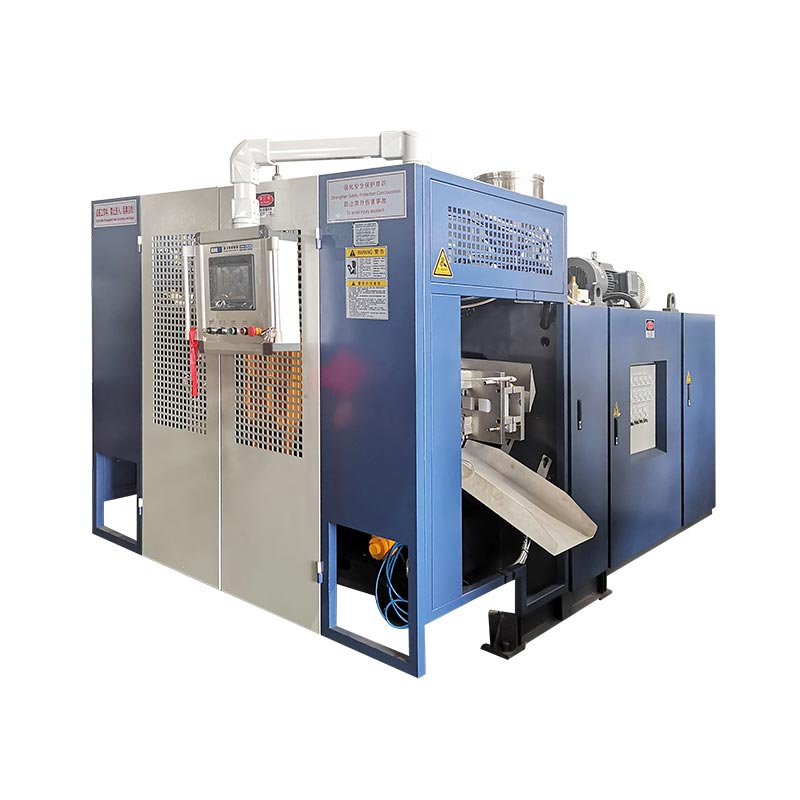

Mesin ngeculke jotosan 2l kaping pindho

Model:KGB2D

Ngoptimalake produksi kanthi mesin pendhapat-owahan jotosan jotosan sing dhuwur 2L. Dirancang kanggo kontaner maksimal 2L, sistem serba guna iki bisa cocog kanggo ngasilake macem-macem produk.

Jilid: 2LBobot: 4.5t

Kirim Pitakonan

Deskripsi Produk Specification Application

Gampang ngalih menyang Konfigurasi Kepala 2, 3, utawa 4 Multi-mati kanggo nampung volume sing luwih cilik, sing cocog kanggo aplikasi sing beda. Saka botol sampo kanggo susu botol susu sing dibutuhake, mesin pembebangan stasiun 2L 2L iki ngeculake kualitas lan output sing wis luar biasa. Jelajahi rega mesin plastik sing kompetitif kanggo rega mesin mesin ngecor jotosan lan mbukak kunci potensial kanggo nambah bathi.

Fitur lan Keuntungan

Sistem kontrol elektronik canggih bisa dianggep minangka "otak cerdas", dilengkapi karo kontrol Mitsubishi Plc, kanthi proses automasi sing tepat lan kemampuan kanggo nglakokake instruksi kompleks kanthi tepat. Ing wektu sing padha, desain tombol manual mandiri ngidini operator kanthi cepet diwiwiti lan gampang calibrate macem-macem paramèter nalika nemoni kahanan sing ora dikarepake, lan entuk kolaborasi mesin sing efisien.
Fitur Kompak lan Multifunctional fokus ing produksi kontos-ukuran cilik lan medium ukuran 2L lan ing ngisor iki. Desain awak sing dioptimalake entuk efisiensi maksimal ing papan sing winates, manggoni area cilik, gampang dilebokake, lan cocog karo macem-macem tata letak. Apa bengkel cilik utawa pabrik skala gedhe, bisa gampang dikendhaleni, nyedhiyakake solusi produksi sing cocog kanggo perusahaan kanthi macem-macem ukuran.

Specifications

serial number	Material PE、PP、ABS ...	Mold closing oil cylinder(single cylinder)
serial number	Material PE、PP、ABS ...	Machine model:KGB2D
Specification
1	Max container capacity	2L
2	Output(dry Cycle)	600 x 2 PC/HR
3	Machine Dimension(L×W×H)	3.1M x2.2 M x2.5 M
4	Machine weight	4.5 T
Clamping Unit
1	Clamping force	40 KN
2	Mold platen size(W×H)	338 MM x 430 MM
3	Platen openingstroke	145 MM - 368 MM
4	Platen moving stroke	370 MM
5	Max mold size(W×H)	360 MM×380 MM
6	Mold thickness	160 MM - 300 MM
Power
1	Servooil pump motor power	11KW
2	Servo pump displacement	80 L/MIN
3	Blowpressure	0.6 Mpa
4	Air consumption	0.6 M²/MIN
5	Cooling water pressure	0.2-0.3 Mpa
6	Water consumption	60 L/min
7	Average energy consumption	12 KW-18 KW
Extruder unit
1	Screw diameter	60 MM
2	Screw L/D ratio	25 L/D
3	HDPEMelting capacit for HDPE	55 Kg/hr
4	Number of heating zone	3 ZONE
5	Screw heating power	12.6 KW
6	Screw fanpower	0.25 KW
7	Extruder motor power	15 KW
Die head
1	Number of heating sections	3*5 ZONE
2	Heating power	3.2 KW
3	Maxdie-pin diameter	90 MM
4	2Center distance of double die head	130MM
5	2MTMax die-pindiameter	60MM
