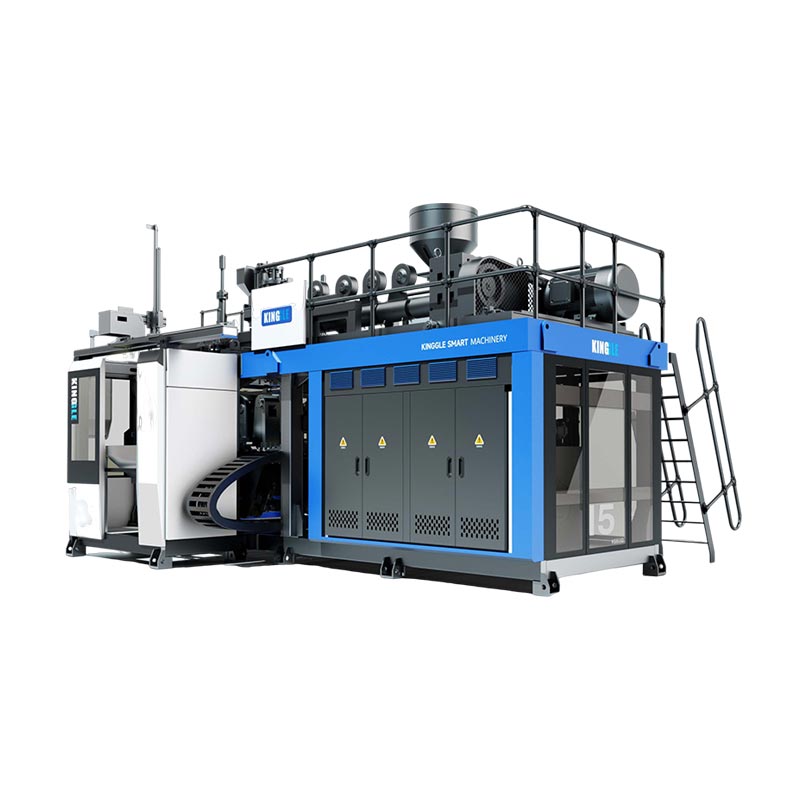

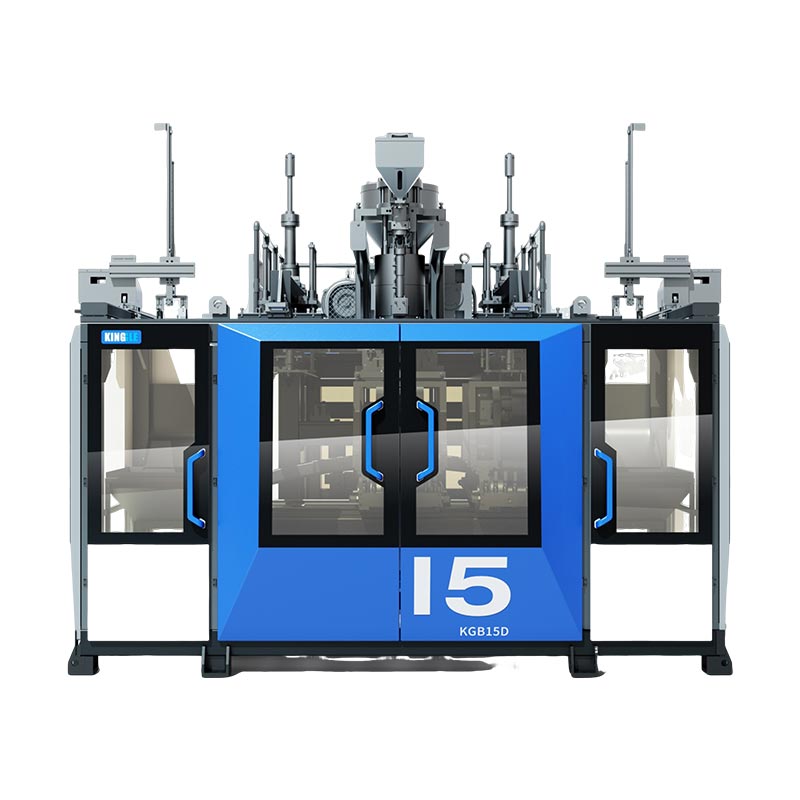

15l mesin bledosan jotosan jotosan jotosan

Model:KGB15D

Ngoptimalake produksi karo mesin kaping pindho jotosan sing serbiasaan terus-terusan, dirancang kanggo kontaner nganti 15l. Machine High-Blow Dobel Stasiun Tinggi 15l iki nawakake konfigurasi fleksibel, kalebu persiyapan kepala 2, 3, utawa 4, utawa 4, kanggo nampung macem-macem ukuran wadhah.

Jilid: 15lBobot: 12.5t

Kirim Pitakonan

Deskripsi Produk Specification Application

Saka botol cilik-volume menyang wadhah 15l sing gedhe, kalebu mesin mesin plastik larut tarub, mesin pindho jotosan jotosan 15l iki minangka kualitas sing efisien. Cocog kanggo macem-macem aplikasi, kalebu solusi mesin campuran campuran campuran saben dinten, kayata shampoo, cuci cuci shampoo, lan kosmetik, iku ngirim output luar biasa lan maksimalake wangsulane.

Fitur lan Keuntungan

Operasi Stasiun kaping pindho, promosi proses produksi, sacara signifikan nyampurnakake siklus produksi 30l, meh tikel produksi produksi ing stasiun, lan kanthi efisien ketemu kabutuhan produksi skala gedhe.
Dilengkapi piranti ngalih molding kanthi tliti, katup buffer throttle kanggo kontrol cetakan sing tepat, pangowahan cetakan cepet, wektu debugging cendhak, tingkat kekurangan sithik, njamin produksi stabil.
Mitsubishi PLC Kontrol Utama, Program Pra-Set kanggo penyesuaian sing tepat saka paramèter ngecor jotosan, tombol manual kanggo operator kanggo calibrate, lan interaksi mesin-mesin.
Kita bisa ngasilake kontaner 15l kanthi lapisan siji, dobel telung taun, lan garis transparan sing dibutuhake, cocog kanggo kabutuhan kemasan ing pirang-pirang industri kayata bahan kimia, panganan, lan farmasi.

Specifications

serial number	Material PE、PP、ABS ...	Mold closing oil cylinder(single cylinder)
serial number	Material PE、PP、ABS ...	Machine model:KGB15D
Specification
1	Max container capacity	15L
2	Output(dry Cycle)	450x2 PC/HR
3	Machine Dimension(L×W×H)	4.8M x2.9 M x2.8 M
4	Machine weight	12.5 T
Clamping Unit
1	Clamping force	165 KN
2	Mold platen size(W×H)	500 MM x 550 MM
3	Platen openingstroke	280 MM - 680 MM
4	Platen moving stroke	600 MM
5	Max mold size(W×H)	580 MM×550 MM
6	Mold thickness	300 MM - 380 MM
Power
1	Servooil pump motor power	18.5KW
2	Servo pump displacement	130 L/MIN
3	Blowpressure	0.6 Mpa
4	Air consumption	1.1 M²/MIN
5	Cooling water pressure	0.2-0.3 Mpa
6	Water consumption	110 L/min
7	Average energy consumption	25 KW-34 KW
Extruder unit
1	Screw diameter	90 MM
2	Screw L/D ratio	25 L/D
3	Melting capacit for HDPE	120 Kg/hr
4	Number of heating zone	4 ZONE
5	Screw heating power	16 KW
6	Screw fanpower	0.6 KW
7	Extruder motor power	45 KW
Die head
1	Number of heating sections	3*8 ZONE
2	Heating power	6.5 KW
3	Maxdie-pin diameter	220 MM
4	2Center distance of double die head	240-280MM
5	2MTMax die-pindiameter	150MM
