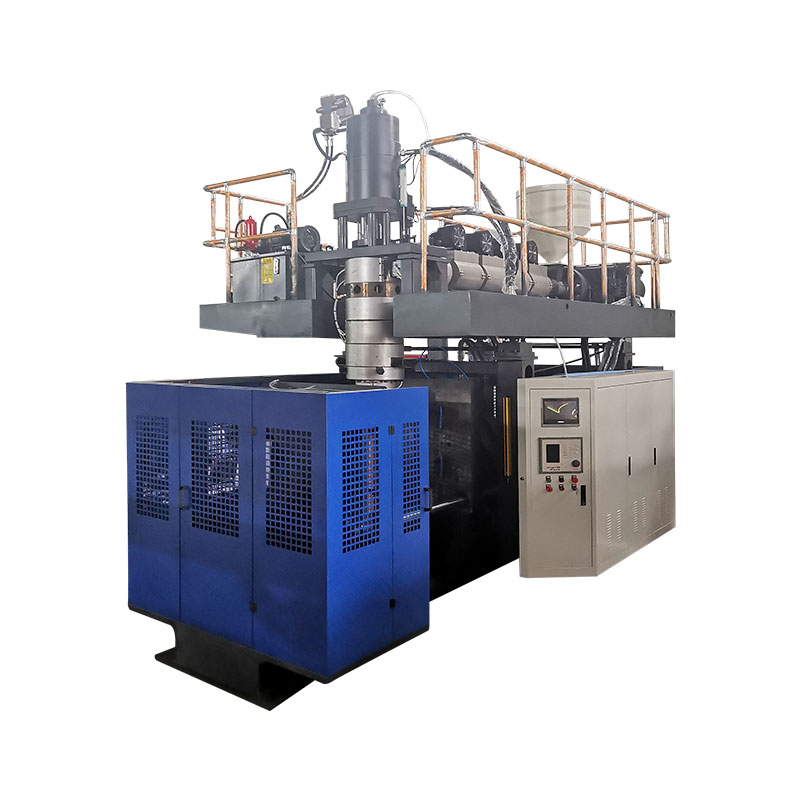

60L mesin molding blowcar

Model:KGB90AP

Kanggo KGB90ap, mesin pembebangan jotosan energi 60l sing efisi nampilake lapisan tikel kaping pindho utawa teknologi mesin molding warna dobel. Dirancang khusus kanggo aplikasi tikel kaping pindho 60L Blowing Aplikasi, kayata Mesin Tangke Molding / Kontaner Panyimpen Industri, mesthekake lajen lan tabungan biaya.

Jilid: 60LBobot: 15t

Kirim Pitakonan

Deskripsi Produk Specification Application

KGB90AP Mesin Molding Jotosan Empat Emputulator duwe sistem ekstrus kaping pindho bisa nempelake lapisan kaping pindho utawa syarat produksi warna kaping pindho kanggo ngluwihi Produk Rang.
Kalebu pengontrol Kebalihan 100 Kebalur, lengen robot, lan bledosan ngisor Sistem, nambah produktivitas lan kualitas produk. Mesin serba guna iki cocog kanggo macem-macem aplikasi, kalebu cetakan gendang kimia Solusi mesin, plastik expting mesin surem mesin pemrosesan ,.

Fitur lan Keuntungan

Model iki minangka cetakan cetakan cetakan lan nutup, nggunakake rod dobel pindho Mekanisasi nutup sinkronisasi, lan tekanan langsung silinder silinder clamping
Silinder Panyimpen Die Series
Volume maksimal 60L
FOTOOLBOX sing cocog, lsp.
Nggunakake teknologi sing unik, cetakan stok pressurization, clamping gedhe Pasukan, kacepetan clamping cepet, siklus produk cendhak

Specifications

serial number	Material PE、PP、ABS ...	Mold closing oil cylinder(single cylinder)
serial number	Material PE、PP、ABS ...	Machine model:KGB90AP
Specifications
1	Max container capacity	60 L
2	Output(dry Cycle)	500 PC/HR

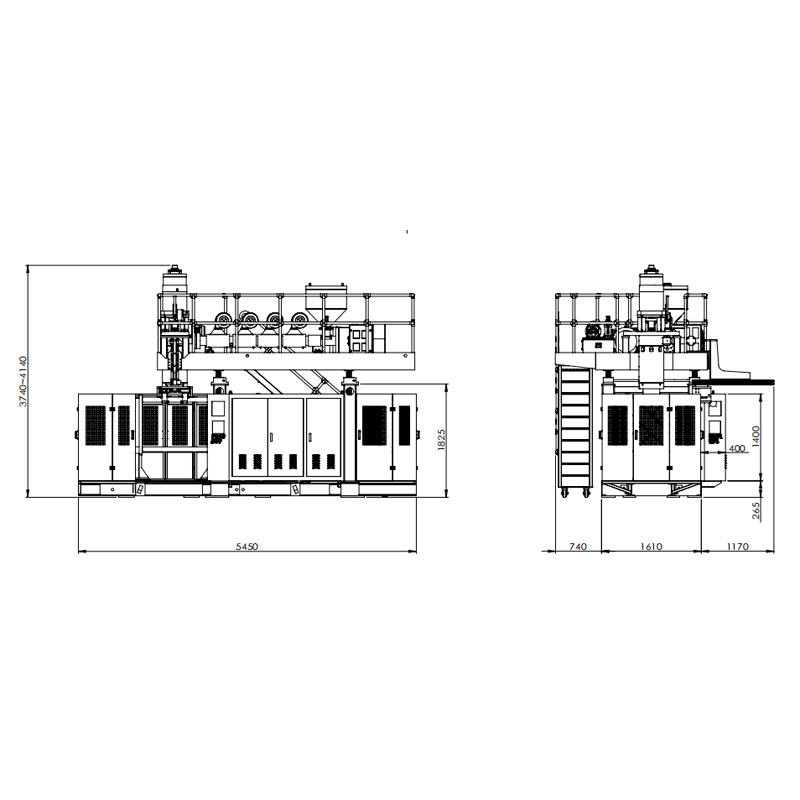

3	Machine Dimension(L×W×H)	5.45 M x 3.5 M x 4.2 M
4	Machine weight	15T
Clamping Unit
1	Clamping force	280 KN
2	Mold platen size(W×H)	960 MM x 980 MM
3	Platen openingstroke	450 MM -1050 MM
4	Platen moving stroke	500 MM
5	Max mold size(W×H)	700 MM×980 MM
6	Mold thickness	460 MM -550 MM
Power
1	Servooil pump motor power	18.5 KW
2	Servo pump displacement	150 L/MIN
3	Blowpressure	0.8 Mpa
4	Air consumption	1 M²/MIN
5	Cooling water pressure	0.3 Mpa
6	Water consumption	90 L/min
7	Average energy consumption	35 KW - 45 KW
Extruder unit
1	Screw diameter	2*70 MM
2	Screw L/D ratio	24 L/D
3	Melting capacit for HDPE	130 Kg/hr - 160 Kg/hr
4	Number of heating zone	4 ZONE
5	Screw heating power	17.6 KW
6	Screw fanpower	0.5 KW
7	Extruder motor power	2*22 KW
Die head
1	Number of heating sections	5 ZONE
2	Heating power	26.8 KW
3	Maxdie-pin diameter	320 MM
4	Accumulator capacity	6.6 L
5	(PE)Accumulator weight	4.95 KG
