250l Nglumpukake Mesin Mudhunake Kimia Barrel

Model:KGB200L/LP

Iki khusus 250L nglumpukake mesin campuran campuran kimia sing dirancang khusus kanggo ngasilake tong bimia biru biru 220L kaping pindho kanthi kualitas dhuwur. Nggunakake mekanisme nutup terbuka sing tetep kanthi sistem Clamping sinkronisasi sinkronisasi tikel tikel gambar, mesthekake clamping stabil lan tahan lama.

Jilid: 250LBobot: 39T

Kirim Pitakonan

Deskripsi Produk Specification Application

Tikel kaping pindho paten, akumulator tikel kaping pindho mati sirah, digabungake Kanthi unit ekstrumasi kinerja dhuwur, ngirim asil sing luar biasa. Iki mesin kimia barrel bledhek ngeculake nggabungake 100 kekandelan Controller, lengen robot, lan sistem jotosan ngisor kanggo efisiensi ditingkatake. Drum sing diproduksi ketemu standar kualitas stringent, kalebu lulus Tes 3 meter lan entuk sertifikasi PBB.

Fitur lan Keuntungan

Panyimpen Injeksi Pusat Injeksi Double-Silinder kaping pindho sirah
● Entuk kapasitas produksi dhuwur liwat desain lancar lan tliti Pabrik, saged ngasilake 17-20 potongan / jam
● Tong sing diprodhuksi bisa ngliwati tes Drop 3m lan un lengkap Sertifikasi

Bobot tong taun 200L: 12-15 kg

Bahan: Hmwhdpe

Kekandelan: 3.5-4 mm

Mesin ngeculke tong minyak khusus iki dirancang kanggo produksi kembang kimia sing efisien 220L kanthi efisien. Nggunakake mekanisme nutup terbuka sing tetep, sistem clamping sinkronisasi sinkron mabu gambar, lan kaping pindho sing paten, akumulasi tikel kaping pindho mati sirah mati, mula ngirimake kinerja sing luar biasa.

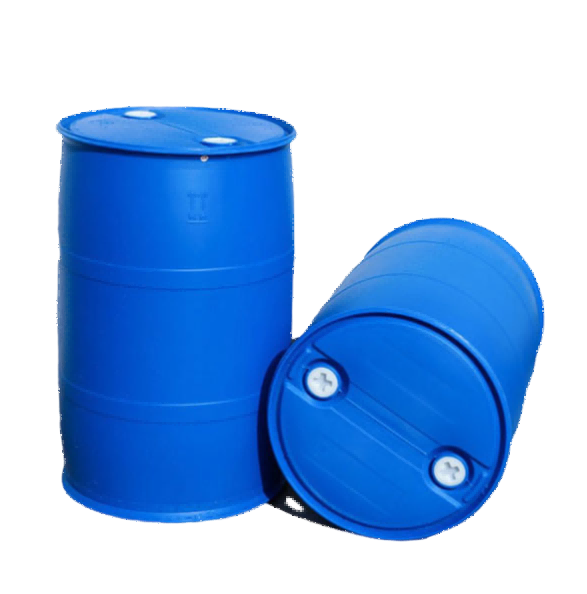

Double layer 220L double-ring chemical barrel blow molding machine

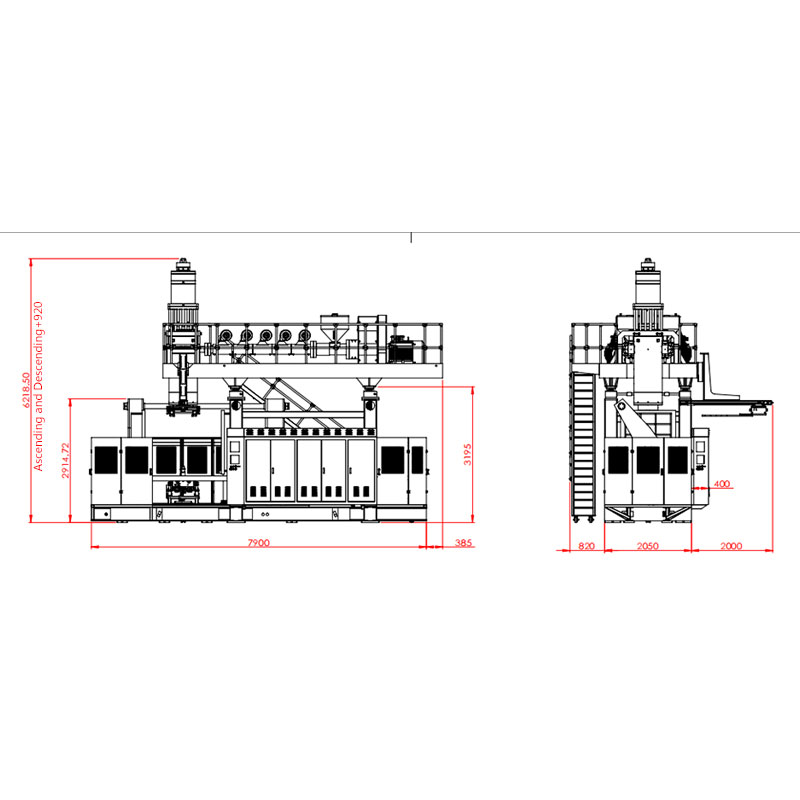

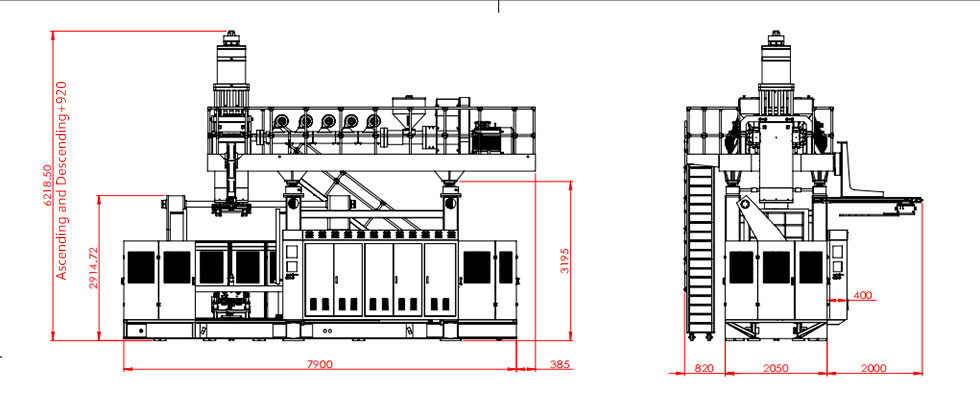

Nggambar

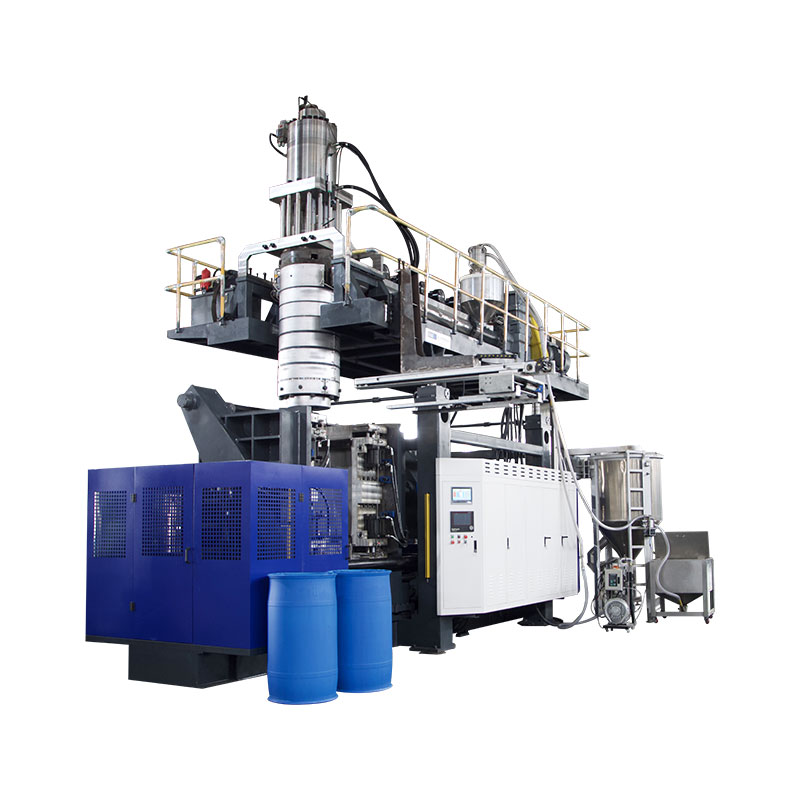

250L accumulate chemical barrel special blow molding machine

Specifications

Serial number	Material PE、PP、ABS、HMWHDPE..	Fixed open- closing type Specialized Machine Series
Serial number	Material PE、PP、ABS、HMWHDPE..	Machine model:KGB200L/LP
Specifications
1	Max container capacity	250 L
2	Output(dry Cycle)	300 PC/HR
3	Machine Dimension(L×W×H)	9.5 M x 4.1 M x 6.5 M
4	Machine weight	39 T
Clamping Unit
1	Clamping force	760 KN
2	Mold platen size(W×H)	1300 MM x 1500 MM
3	Platen opening stroke	800 MM - 1800 MM
4	Platen moving stroke	950 MM
5	Max mold size(W×H)	1100 MM×1700 MM
6	Mold thickness	810 MM-950 MM
Power
1	Servo oil pump motor power	37 KW + 22 KW
2	Servopump displacement	200 L/MIN + 138 L/MIN
3	Blow pressure	0.8 Mpa
4	Air consumption	1.8 M³/MIN
5	Cooling water pressure	0.3 Mpa
6	Water consumption	120 L/min
7	Average energy consumption	70 KW- 80 KW
Extruder unit
1	Screw diameter	100 MMx2 MM
2	Screw L/D ratio	32 L/D
3	Melting capacit for HDPE	180 Kg/hr x 2 Kg/hr
4	Number of heating zone	6 ZONE
5	Screw heating power	30.2 KW
6	Screw fan power	0.6 KW
7	Extruder motor power	90 KW x 2 KW
Die head
1	Number of heating sections	5 ZONE
2	Heating power	38.8 KW
3	Max die-pin diameter	450 MM
4	Accumulator capacity	25 L
5	(PE)Accumulator weight	18 KG
