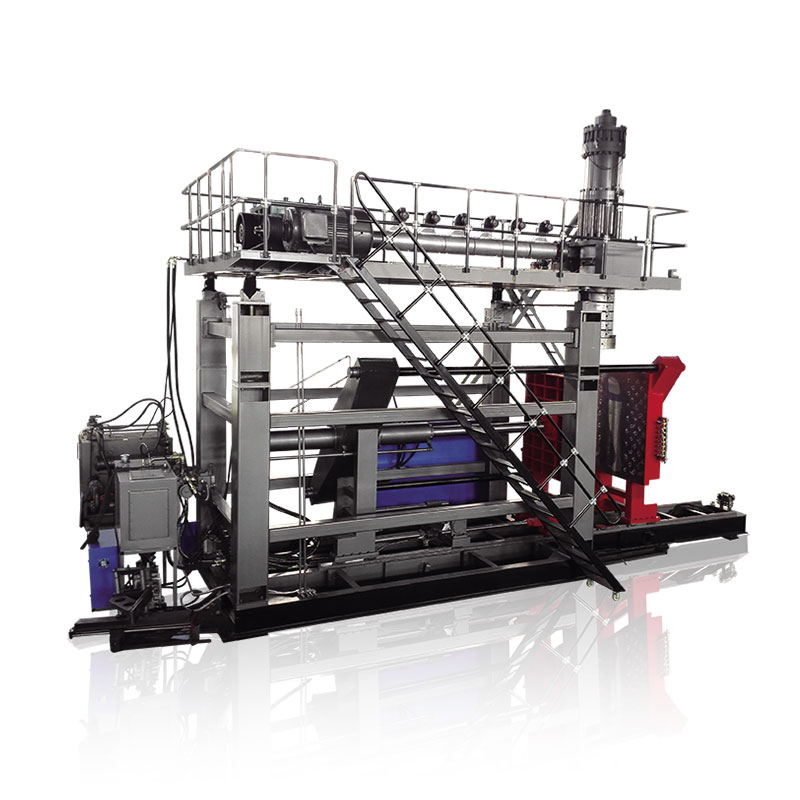

Tangki banyu IBC 1000L nglumpukake mesin cetakan jotosan

Model:KGB1000L- IBC

Ngalami kekuwatan lan stabilitas tank banyu KGB1000L IBC nglumpukake mesin campuran jotosan, sing nampilake bobote umume luwih saka 55 ton kanggo nyuda getaran lan pamindahan. Rod dobel dobel telung dobel diagonal, mesthekake distribusi stres sanajan distrik stres ing ndhuwur akurasi produksi.

Jilid: 1000LBobot: 55t

Kirim Pitakonan

Deskripsi Produk Specification Application

Tangki banyu IBC IBC iki nglumpukake mesin pembentuk jotosan nggabungake prinsip teknologi bledug lan produksi multi-lapisan kanggo biaya sing luwih murah lan kakuwatan produk sing luwih apik. Cocog kanggo ngasilake kontiner sing gedhe-kapasitas, kalebu aplikasi mesin ngecul banyu tank, mesin iki dirancang khusus kanggo drum IBC, tangki minyak mobil gedhe, lan liya-liyane. Hubungi kita dina iki kanggo kutipan khusus lan njelajah rega mesin banyu wapet tank kompetitif.

Fitur lan Keuntungan

Peralatan sakabèhé bisa nganti luwih saka 55 ton, kanthi efektif nyuda geter lan pamindahan mesin, lan nambah akurasi produksi lan nambah akurasi produksi lan stabilitas.
● Dipotong dobel dobel dobel dobel telung tiga cithakan, cithakan kasebut luwih stres lan ora gampang cacat
● Produksi Multi-Lapisan nyuda biaya produksi lan nambah daya tahan produk
● Cocog kanggo produksi produk plastik gedhe kayata menara banyu, tank panyimpenan, kontaner kimia, lsp.

1000L IBC water tanks accumulate blow molding machine

Specifications

Serial number	Material PE、PP、ABS、HMWHDPE..	Fixed open- closing type Specialized Machine Series
Serial number	Material PE、PP、ABS、HMWHDPE..	Machine model:KGS1000L-IBC
Specifications
1	Max container capacity	1000 L
2	Output(dry Cycle)	150 L

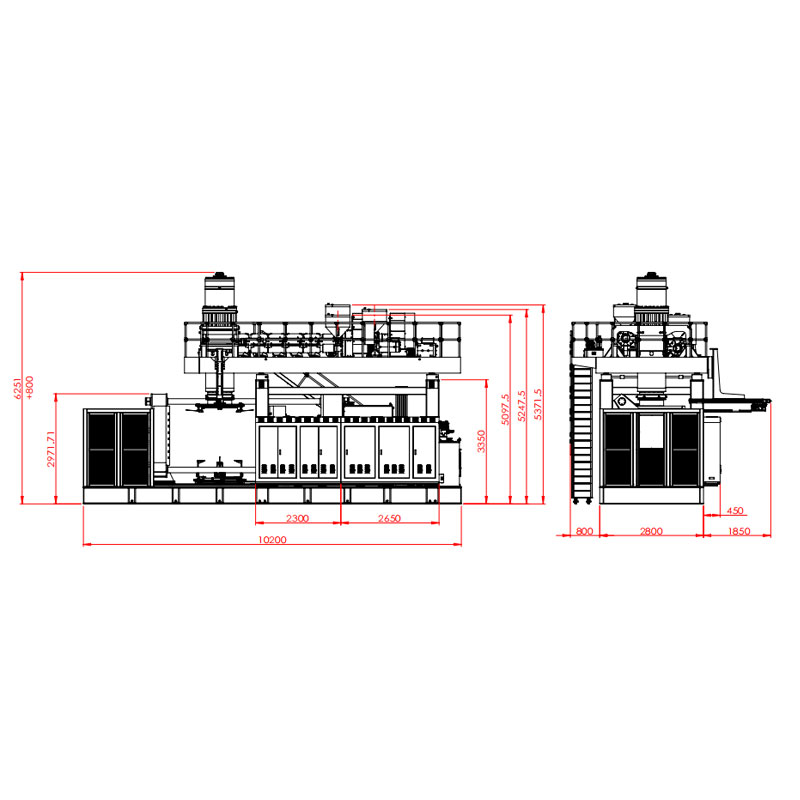

3	Machine Dimension(L×W×H)	9.5 M x 5.1 M x 6.5 M
4	Machine weight	55 T
Clamping Unit
1	Clamping force	1000 KN
2	Mold platen size(W×H)	1800 MM x 1600 MM
3	Platen opening stroke	1150 MM - 2700 MM
4	Platen moving stroke	950 MM
5	Max mold size(W×H)	1600 MM x 1500 MM
6	Mold thickness	1200 MM - 1400 MM
Power
1	Servo oil pump motor power	25 KW
2	Servopump displacement	250 L/MIN
3	Blow pressure	0.8 Mpa
4	Air consumption	2 M³/MIN
5	Cooling water pressure	0.3 Mpa
6	Water consumption	120 L/min
7	Average energy consumption	110 KW - 150 KW
Extruder unit
1	Screw diameter	100 MM x 2 MM
2	Screw L/D ratio	32 L/D
3	Melting capacit for HDPE	180 Kg/hr x 2 Kg/hr
4	Number of heating zone	6 ZONE
5	Screw heating power	30.2 KW
6	Screw fan power	0.6 KW
7	Extruder motor power	90 KW x 2 KW
Die head
1	Number of heating sections	5 ZONE
2	Heating power	38.8 KW
3	Max die-pin diameter	450 MM
4	Accumulator capacity	45 L
5	(PE)Accumulator weight	33 KG
